High Quality Industrial X-Ray Microfocus CT Equipment YS-8500

  • 1
  • 2

Place of Origin : Guangdong, China

Brand Name : YUSH

MOQ : 1 set

Price : $35,000 / set

Voltage : 160KV

Power : 64W

Weight : 2800

Dimensions : 1500mm *1650mm *2250mm

Defect resolution : 1 μm

Geometric magnification : 2000 times

Scanning mode : 360°

Motion mechanism : 8-axis

CT function : Cone beam CT

Image enhancement : Automatic gray distribution

Core components : Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear

X-ray tube : COMET open design

Transmission target : Minimum FOD

Inspection capability : Micro-scale features

Contact Now

High Quality Industrial X-Ray Microfocus CT Equipment YS-8500
The YS-8500 universal industrial X-ray inspection system comprises an X-ray source, detector, scanning system, and image reconstruction and analysis system. This advanced equipment supports multiple inspection methods including 2D, 3D, and CT scanning, making it ideal for quality inspection, 3D measurement, and non-destructive analysis applications.
Key Applications
  • SMT surface packaging components: PoP, BGA, QFN, QFP, DIP, IC inspection
  • Semiconductor inspection including TSV, Flip chip, Copper Pillar analysis
  • Micro chip and low-density material inspection
  • Sensors, relays, fuses, micro motors (MEMS, MOEMS), cables and plugs
  • Various materials including plastic, ceramics, optical components, small titanium and aluminum castings
  • Electronic component soldering quality inspection for BGA components, integrated circuits, and bonding wires
  • Detection of soldering abnormalities including missing parts, deviation, tin connection, contamination, faulty soldering, component foot warping, voids, and pillow effect
Performance Features and Advantages
  • COMET open X-ray tube design with defect inspection capability reaching 1 μm
  • Transmission target with minimum FOD and geometric magnification exceeding 2000×
  • Highest defect resolution for precise analysis
  • 360° scanning mode with proprietary technology for fixed-point defect observation
  • 8-axis motion mechanism enabling sample analysis from any angle
  • Unique tracking technology maintains detected point at image center during detector tilt or rotation
  • Planar CT function (PCT) for 3D/CT inspection of printed circuit boards, SMTs, IGBTs, and wafers
  • Cone beam CT function for sensors, relays, micro motors, materials, and aluminum casting inspection
  • Rapid CT scanning and reconstruction to meet daily analysis requirements
  • MES module for seamless integration with Industry 4.0 information management systems
  • Image enhancement technology automatically optimizes gray distribution for superior black and white contrast

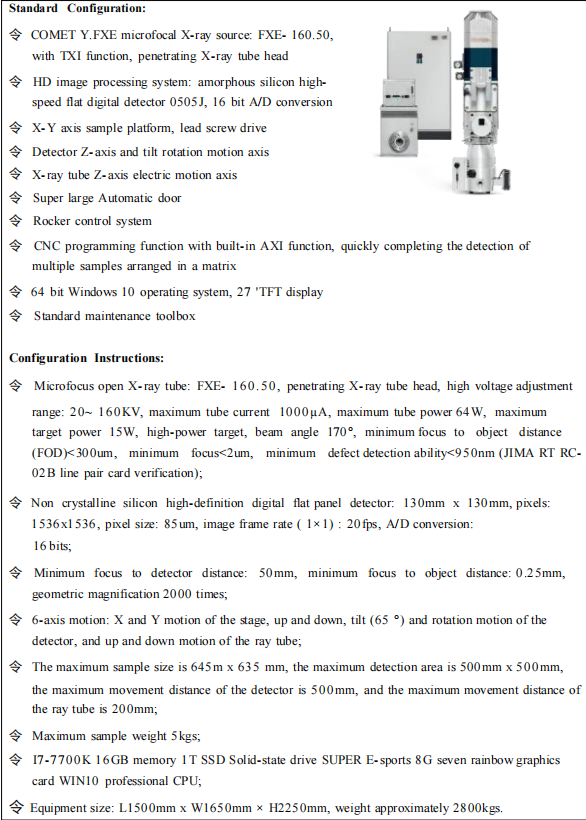

Standard Configuration
High Quality Industrial X-Ray Microfocus CT Equipment YS-8500
Extended Configuration Options
High Quality Industrial X-Ray Microfocus CT Equipment YS-8500
High Quality Industrial X-Ray Microfocus CT Equipment YS-8500
High Quality Industrial X-Ray Microfocus CT Equipment YS-8500
High Quality Industrial X-Ray Microfocus CT Equipment YS-8500
